Series 102
Bull Nose
Live Center
Product features
- Tool with small housing diameter for optimal accessibility
- Additional bearing for axial load
- MT shank hardened and ground
- Center point made of through hardened tool steel
- Maintenance-free permanent lubrication
- Labyrinth seal
- Shaft sealing prevents ingress of dirt and coolant

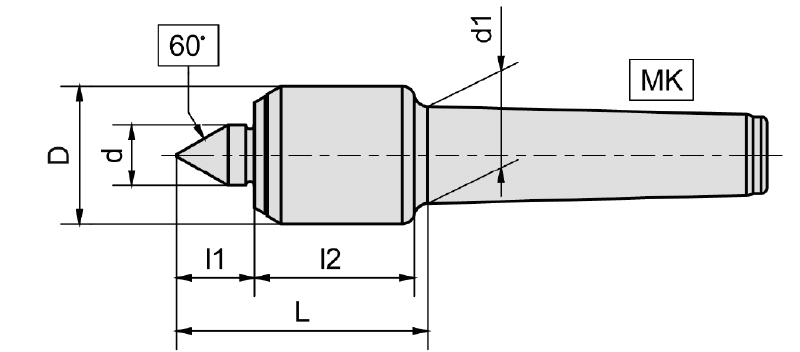

MK: 2
D: 32
d: 15
d1: 17,78
L: 64
l1: 19,5
l2: 39
Rotational frequency max. [1/min] [1/min]: 6000
Workpiece weight max. [kg] [kg]: 200
Concentricity run-out max. [mm] [mm]: 0,005
Axial pressure max. [kN]: 1,28
MK: 3
D: 34
d: 15
d1: 23,83
L: 64
l1: 19,5
l2: 39
Rotational frequency max. [1/min] [1/min]: 6000
Workpiece weight max. [kg] [kg]: 400
Concentricity run-out max. [mm] [mm]: 0,005
Axial pressure max. [kN]: 1,28
MK: 4
D: 43
d: 20
d1: 31,27
L: 77
l1: 27
l2: 43
Rotational frequency max. [1/min] [1/min]: 6000
Workpiece weight max. [kg] [kg]: 800
Concentricity run-out max. [mm] [mm]: 0,005
Axial pressure max. [kN]: 1,78
MK: 5
D: 58
d: 30
d1: 44,40
L: 105
l1: 37
l2: 59
Rotational frequency max. [1/min] [1/min]: 4000
Workpiece weight max. [kg] [kg]: 1200
Concentricity run-out max. [mm] [mm]: 0,008
Axial pressure max. [kN]: 2,55
