Series 905
Traveling
Precision lathe tip
Product features
- Same design as Series 805, but with interchangeable grain inserts for maximum flexibility
- Replacing the inserts by twisting them against each other with two open-end wrenches on the wrench flats of the axis and insert
- Forcing nut according to CONZELLA factory standard
- For high speeds and high axial forces
- High concentricity due to high-end bearings
- Complete tool hardened and ground
- Maintenance-free permanent lubrication
- Shaft seal ring prevents ingress of dirt and coolant
- With additional seal also suitable for grinding applications

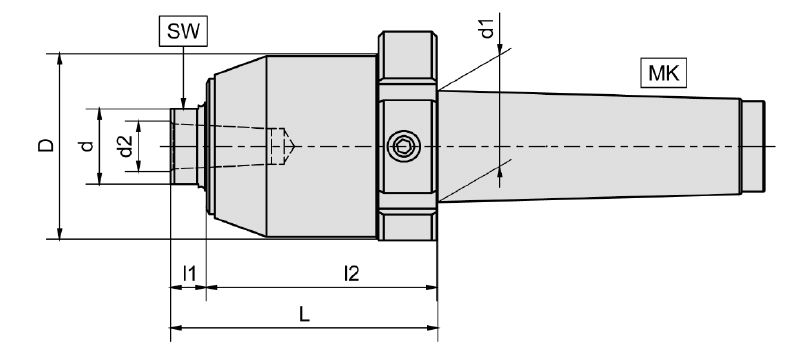

MK: 3
D: 52
d: 25
d1: 23,83
L: 73
l1: 10
l2: 56
d2: 12
SW: 19
Speed max. [1/min]: 12000
Workpiece weight max. [kg]: 250
Runout deviation max. [mm]: 0,005
Matching inserts [E]: E923
Bead breaking screw [G]: M 54 x 1.5
MK: 4
D: 60
d: 28
d1: 31,27
L: 80
l1: 10
l2: 63
d2: 14
SW: 22
Speed max. [1/min]: 10000
Workpiece weight max. [kg]: 400
Runout deviation max. [mm]: 0,005
Matching inserts [E]: E933
Bead breaking screw [G]: M 62 x 1.5
MK: 5
D: 72
d: 35
d1: 44,40
L: 103
l1: 14
l2: 82
d2: 18
SW: 30
Speed max. [1/min]: 8000
Workpiece weight max. [kg]: 800
Runout deviation max. [mm]: 0,005
Matching inserts [E]: E943
Bead breaking screw [G]: M 74 x 1.5
MK: 6
D: 83
d: 44
d1: 63,35
L: 110
l1: 15
l2: 88
d2: 24
SW: 36
Speed max. [1/min]: 5000
Workpiece weight max. [kg]: 1200
Runout deviation max. [mm]: 0,005
Matching inserts [E]: E953
Bead breaking screw [G]: M 85 x 1.5
