Series 700

Spring loaded follower
Precision lathe tip

Product features

  • Spring-loaded design for axial length compensation during machining
  • With interchangeable inserts for maximum flexibility
  • Replacing the inserts on the 700 series with expulsion wedge
  • Replacing the inserts on the 701 series by twisting them against each other with two open-end wrenches on the wrench flats of the axis and insert
  • Complete tool hardened and ground
  • Maintenance-free permanent lubrication
  • Shaft seal ring prevents ingress of dirt and coolant

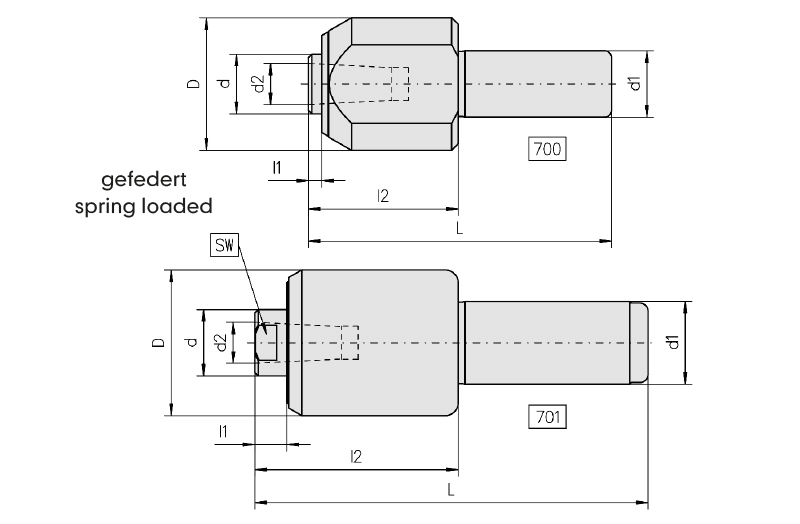

Shank: 3/4″
D: 40
d: 18
d1: 19,05
L: 91
l1: 4
l2: 45
d2: 12
Spring travel: 2.4
Speed max. [1/min]: 4000
Workpiece weight max. [kg]: 200
Runout deviation max. [mm]: 0,01
Axial pressure max. [kN]: 1,05
Matching inserts [E]: E923

Shank: 19 mm
D: 40
d: 18
d1: 19,00
L: 91
l1: 4
l2: 45
d2: 12
Spring travel: 2.4
Speed max. [1/min]: 4000
Workpiece weight max. [kg]: 200
Runout deviation max. [mm]: 0,01
Axial pressure max. [kN]: 1,05
Matching inserts [E]: E923

Shank: 20 mm
D: 40
d: 18
d1: 20,00
L: 91
l1: 4
l2: 45
d2: 12
Spring travel: 2.4
Speed max. [1/min]: 4000
Workpiece weight max. [kg]: 200
Runout deviation max. [mm]: 0,01
Axial pressure max. [kN]: 1,05
Matching inserts [E]: E923

Shank: 1″
D: 44
d: 20
d1: 25,40
L: 118
l1: 10
l2: 61
d2: 12
SW: 17
Spring travel: 3.0
Speed max. [1/min]: 3000
Workpiece weight max. [kg]: 300
Runout deviation max. [mm]: 0,01
Axial pressure max. [kN]: 1,05
Matching inserts [E]: E923

Shank: 20 mm
D: 44
d: 20
d1: 20,00
L: 118
l1: 10
l2: 61
d2: 12
SW: 17
Spring travel: 3.0
Speed max. [1/min]: 3000
Workpiece weight max. [kg]: 300
Runout deviation max. [mm]: 0,01
Axial pressure max. [kN]: 1,05
Matching inserts [E]: E923

Shank: 25 mm
D: 44
d: 20
d1: 25,00
L: 118
l1: 10
l2: 61
d2: 12
SW: 17
Spring travel: 3.0
Speed max. [1/min]: 3000
Workpiece weight max. [kg]: 300
Runout deviation max. [mm]: 0,01
Axial pressure max. [kN]: 1,05
Matching inserts [E]: E923
