Series 508 EX
Fixed
Precision center point
Product features
- HM tools for grinding high-precision components with large centers
- Roundness at the 60° tip < 0.001 mm
- Fine-grained carbide for high wear resistance
- High surface quality on the shaft for optimum fit in the sleeve
- Please order forcing nuts separately
MK: 3
D: 40
d: 25
d1: 23,38
Lges: 125
L: 44

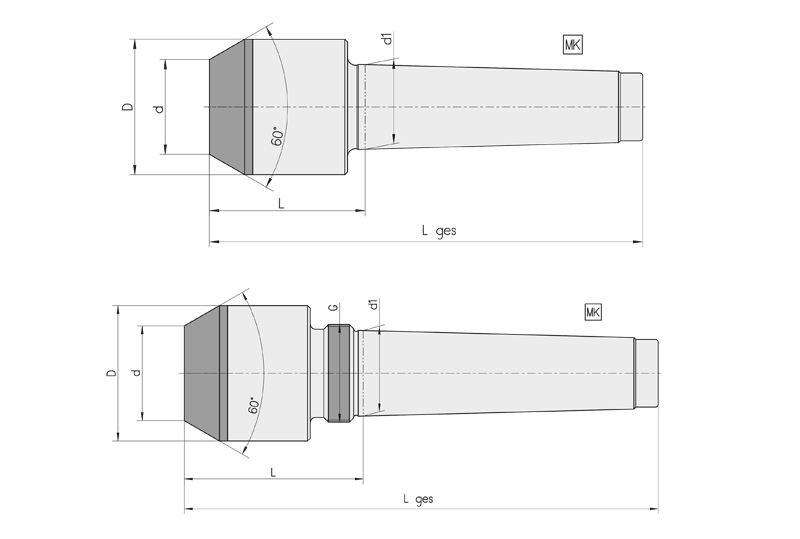

Execution
with forcing thread
MK: 3
D: 40
d: 25
d1: 23,38
L1ges: 138
L1: 57
MK: 4
D: 40
d: 25
d1: 31,27
Lges: 160
L: 57
Execution
with forcing thread
MK: 4
D: 40
d: 25
d1: 31,27
L1ges: 175
L1: 72
MK: 3
D: 50
d: 35
d1: 23,38
Lges: 125
L: 44
MK: 4
D: 50
d: 35
d1: 31,27
Lges: 160
L: 57
Execution
with forcing thread
MK: 3
D: 50
d: 35
d1: 23,38
L1ges: 138
L1: 57
MK: 4
D: 50
d: 35
d1: 31,27
L1ges: 175
L1: 72
MK: 3
D: 60
d: 45
d1: 23,38
Lges: 125
L: 44
MK: 4
D: 60
d: 45
d1: 31,27
Lges: 160
L: 57
Execution
with forcing thread
MK: 3
D: 60
d: 45
d1: 23,38
L1ges: 138
L1: 57
MK: 4
D: 60
d: 45
d1: 31,27
L1ges: 175
L1: 72
MK: 3
D: 70
d: 55
d1: 23,38
Lges: 125
L: 44
MK: 4
D: 70
d: 55
d1: 31,27
Lges: 160
L: 57
Execution
with forcing thread
MK: 3
D: 70
d: 55
d1: 23,38
L1ges: 138
L1: 57
MK: 4
D: 70
d: 55
d1: 31,27
L1ges: 175
L1: 72
MK: 4
D: 80
d: 65
d1: 31,27
Lges: 160
L: 57
Execution
with forcing thread
MK: 4
D: 80
d: 65
d1: 31,27
L1ges: 175
L1: 72
