Series 701 VDI
Spring loaded traveling
Precision lathe tip
Product features
- Spring-loaded tool with pressure indicator for visual monitoring of the set clamping pressure
- Direct clamping in the VDI30 or VDI40 tool turret allows max. short installation situation
- High flexibility due to 7 different interchangeable inserts (not included)
- Replacing the inserts by twisting them against each other with two open-end wrenches on wrench flats of axis + insert
- Maintenance-free permanent lubrication
- Shaft seal ring prevents penetration of dirt + coolant
- Tools completely hardened and ground

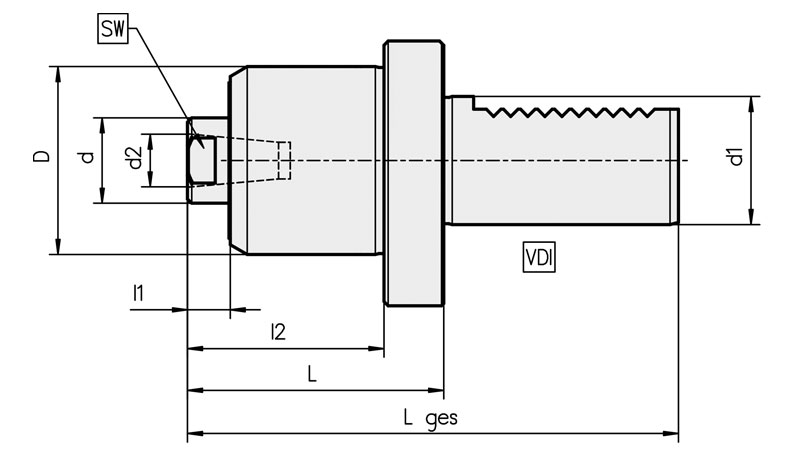

Shank: VDI30
D: 44
d: 20
d1: 30
Lges: 115
L: 46
l1: 10
d2: 12
SW: 17
Spring travel: 3
Rotational frequency max. [1/min] [1/min]: 3000
Workpiece weight max. [kg] [kg]: 300
Concentricity run-out max. [mm] [mm]: 0,010
Axial pressure max. [kN]: 1,05
Matching inserts [E]: E923
Shank: VDI40
D: 44
d: 20
d1: 40
Lges: 123
L: 46
l1: 10
d2: 12
SW: 17
Spring travel: 3
Rotational frequency max. [1/min] [1/min]: 3000
Workpiece weight max. [kg] [kg]: 300
Concentricity run-out max. [mm] [mm]: 0,010
Axial pressure max. [kN]: 1,05
Matching inserts [E]: E923
