Precision tools
Made in Germany
Series 500
Fixed
Precision center point
- Please order forcing nuts separately
- Different versions (also with hollow tips) available as special tools
Product features
- For the grinding of high-precision components
- With carbide tips for high wear applications
- Max. Concentricity error 0.001 mm
- High surface finish on the shaft for optimum fit
- Suitable for many applications due to different geometries
- High-precision version with roundness at taper < 0.001 mm available on request – With measurement report

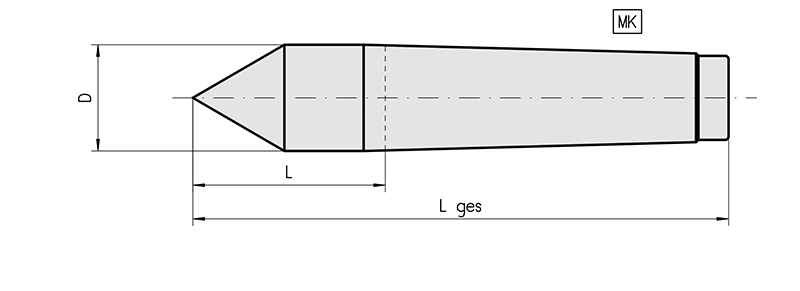

Type 501 DIN 806 WS
Tool steel
Cone: MK1
Order no.: 511
D: 12,2
L ges: 80
L: 26,5
Angle: 60°
Cone: MK2
Order no.: 521
D: 18,0
L ges: 100
L: 26,0
Angle: 60°
Cone: MK3
Order no.: 531
D: 24,1
L ges: 125
L: 44,0
Angle: 60°
Cone: MK4
Order no.: 541
D: 31,6
L ges: 160
L: 57,5
Angle: 60°
Cone: MK5
Order no.: 551
D: 44,7
L ges: 200
L: 70,5
Angle: 60°
Cone: MK6
Order no.: 561
D: 63,8
L ges: 270
L: 88,0
Angle: 60°
Type 508 DIN 806 E
Carbide insert with whole tip
Cone: MK1
Order no.: 518
D: 12,2
L ges: 80
L: 26,5
Angle: 60°
Cone: MK2
Order no.: 528
D: 18,0
L ges: 100
L: 36,0
Angle: 60°
Cone: MK3
Order no.: 538
D: 24,1
L ges: 125
L: 44,0
Angle: 60°
Cone: MK4
Order no.: 548
D: 31,6
L ges: 160
L: 57,5
Angle: 60°
Cone: MK5
Order no.: 558
D: 44,7
L ges: 200
L: 70,5
Angle: 60°
Cone: MK6
Order no.: 568
D: 63,8
L ges: 270
L: 88,0
Angle: 60°

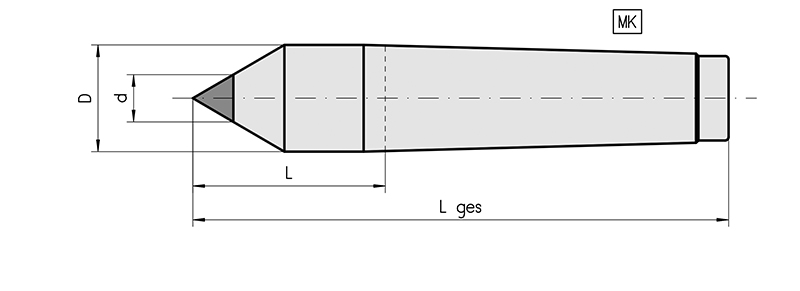

Type 503 DIN 806 E
Carbide insert
Cone: MK1
Order no.: 513
D: 12,2
L ges: 80
L: 26,5
Angle: 60°
d: 7
Cone: MK2
Order no.: 523
D: 18,0
L ges: 100
L: 36,0
Angle: 60°
d: 7
Cone: MK3
Order no.: 533
D: 24,1
L ges: 125
L: 44,0
Angle: 60°
d: 11
Cone: MK4
Order no.: 543
D: 31,6
L ges: 160
L: 57,5
Angle: 60°
d: 14
Cone: MK5
Order no.: 553
D: 44,7
L ges: 200
L: 70,5
Angle: 60°
d: 18
Cone: MK6
Order no.: 563
D: 63,8
L ges: 270
L: 88,0
Angle: 60°
d: 18
Type 504 DIN 806 HE
Carbide insert with half tip
Cone: MK1
Order no.: 514
D: 12,2
L ges: 80
L: 26,5
Angle: 60°
d: 7
h: 1,5
l: 22
Cone: MK2
Order no.: 524
D: 18,0
L ges: 100
L: 36,0
Angle: 60°
d: 7
h: 2,0
l: 30
Cone: MK3
Order no.: 534
D: 24,1
L ges: 125
L: 44,0
Angle: 60°
d: 11
h: 3,0
l: 38
Cone: MK4
Order no.: 544
D: 31,6
L ges: 160
L: 57,5
Angle: 60°
d: 14
h: 5,0
l: 50
Cone: MK5
Order no.: 554
D: 44,7
L ges: 200
L: 70,5
Angle: 60°
d: 18
h: 7,0
l: 63
Cone: MK6
Order no.: 564
D: 63,8
L ges: 270
L: 88,0
Angle: 60°
d: 18
h: 10,0
l: 79

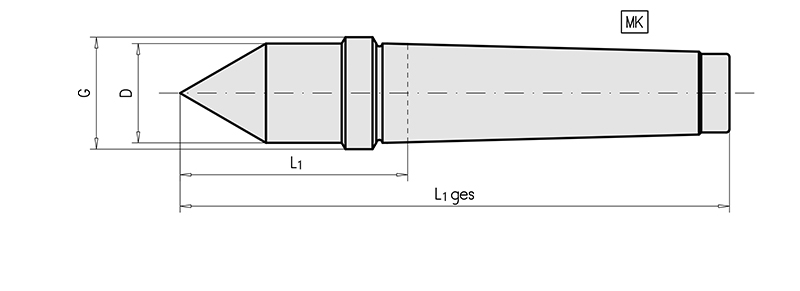

Type 505 DIN 807 WS
Tool steel
Cone: MK1
Order no.: 515
D: 12,2
L ges: 80
L: 26,5
Angle: 60°
G: M 16 x 1.5
Cone: MK2
Order no.: 525
D: 18,0
L ges: 100
L: 36,0
Angle: 60°
G: M 22 x 1.5
Cone: MK3
Order no.: 535
D: 24,1
L ges: 125
L: 44,0
Angle: 60°
G: M 27 x 1.5
Cone: MK4
Order no.: 545
D: 31,6
L ges: 160
L: 57,5
Angle: 60°
G: M 36 x 1.5
Cone: MK5
Order no.: 555
D: 44,7
L ges: 200
L: 70,5
Angle: 60°
G: M 48 x 1.5
Cone: MK6
Order no.: 565
D: 63,8
L ges: 270
L: 88,0
Angle: 60°
G: M 68 x 1.5
Type 506 DIN 807 E
Carbide insert
Cone: MK1
Order no.: 516
D: 12,2
L ges: 90
L1: 36,5
Angle: 60°
d: 7
G: M 16 x 1.5
Cone: MK2
Order no.: 526
D: 18,0
L ges: 112
L1: 48,0
Angle: 60°
d: 7
G: M 22 x 1.5
Cone: MK3
Order no.: 536
D: 24,1
L ges: 138
L1: 57,0
Angle: 60°
d: 11
G: M 27 x 1.5
Cone: MK4
Order no.: 546
D: 31,6
L ges: 175
L1: 72,5
Angle: 60°
d: 14
G: M 36 x 1.5
Cone: MK5
Order no.: 556
D: 44,7
L ges: 217
L1: 87,5
Angle: 60°
d: 18
G: M 48 x 1.5
Cone: MK6
Order no.: 566
D: 63,8
L ges: 290
L1: 108,0
Angle: 60°
d: 18
G: M 68 x 1.5
Type 507 DIN 807 HE
Carbide insert with half tip
Cone: MK1
Order no.: 517
D: 12,2
L ges: 90
L1: 36,5
Angle: 60°
d: 7
h: 1,5
l: 22
G: M 16 x 1.5
Cone: MK2
Order no.: 527
D: 18,0
L ges: 112
L1: 48,0
Angle: 60°
d: 7
h: 2,0
l: 30
G: M 22 x 1.5
Cone: MK3
Order no.: 537
D: 24,1
L ges: 138
L1: 57,0
Angle: 60°
d: 11
h: 3,0
l: 38
G: M 27 x 1.5
Cone: MK4
Order no.: 547
D: 31,6
L ges: 175
L1: 72,5
Angle: 60°
d: 14
h: 5,0
l: 50
G: M 36 x 1.5
Cone: MK5
Order no.: 557
D: 44,7
L ges: 217
L1: 87,5
Angle: 60°
d: 18
h: 7,0
l: 63
G: M 48 x 1.5
Cone: MK6
Order no.: 567
D: 63,8
L ges: 290
L1: 108,0
Angle: 60°
d: 18
h: 10,0
l: 79
G: M 68 x 1.5
