CON-617A9275

Precision tools
Made in Germany

Series 100 Kop

Bull Nose
Live Center

Product features

  • Slim center point [KOP] for better access to workpiece in limited working space
  • Economical standard type for light-duty applications
  • MT shank hardened and ground
  • Center point made of through hardened tool steel
  • High accuracy in concentricity run-out with extremely smooth running
  • Maintenance-free permanent lubrication
  • Labyrinth seal

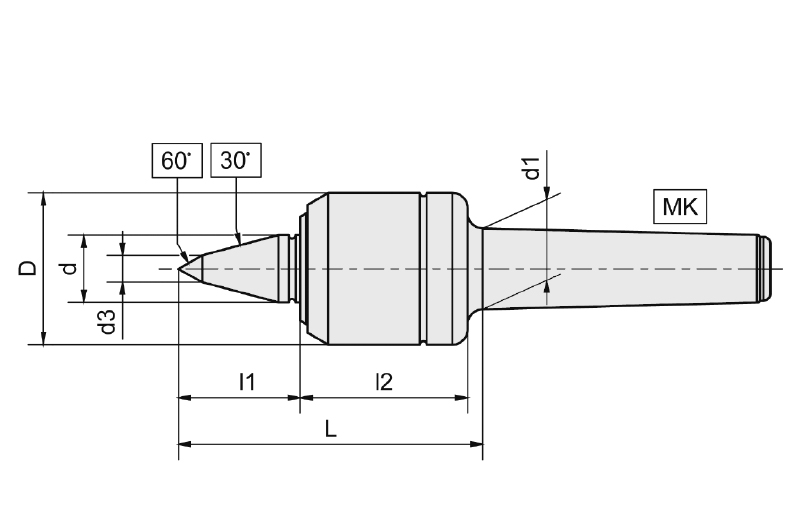

MK: 2
D: 45
d: 20
d1: 17,78
L: 94
l1: 36
l2: 49
d3: 8
Rotational frequency max. [1/min] [1/min]: 5000
Workpiece weight max. [kg] [kg]: 100
Concentricity run-out max. [mm] [mm]: 0,005

MK: 3
D: 45
d: 20
d1: 23,83
L: 94
l1: 36
l2: 49
d3: 8
Rotational frequency max. [1/min] [1/min]: 5000
Workpiece weight max. [kg] [kg]: 150
Concentricity run-out max. [mm] [mm]: 0,005

MK: 3
D: 60
d: 24
d1: 23,83
L: 110
l1: 46
l2: 60
d3: 10
Rotational frequency max. [1/min] [1/min]: 4000
Workpiece weight max. [kg] [kg]: 300
Concentricity run-out max. [mm] [mm]: 0,005

MK: 4
D: 60
d: 24
d1: 31,27
L: 117,0
l1: 46
l2: 60
d3: 10
Rotational frequency max. [1/min] [1/min]: 4000
Workpiece weight max. [kg] [kg]: 400
Concentricity run-out max. [mm] [mm]: 0,005

MK: 4
D: 80
d: 32
d1: 31,27
L: 139
l1: 55
l2: 73
d3: 12
Rotational frequency max. [1/min] [1/min]: 3200
Workpiece weight max. [kg] [kg]: 650
Concentricity run-out max. [mm] [mm]: 0,008
