CON-617A9091

Precision tools
Made in Germany

Series 807

Traveling
high performance lathe tip

Product features

  • Spring-loaded tool with pressure indicator for visual monitoring of the set clamping pressure
  • Optical control option of the clamping pressure during machining
  • Can be used as a mating point to face drivers or to compensate for linear expansion
  • Extremely rigid design with additional shaft bearing
  • Barrel tip made of through-hardened tool steel
  • High concentricity
  • Maintenance-free permanent lubrication
  • Shaft seal ring prevents ingress of dirt and coolant
  • Tools completely hardened and ground

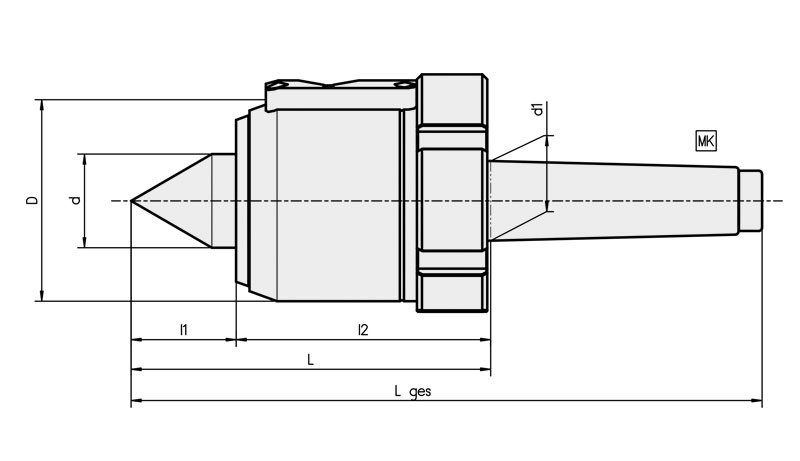

MK: 3
D: 60
d: 28
d1: 23,83
Lges: 188
L: 107
l1: 31
l2: 76
Spring travel [mm]: 3
Speed max. [1/min]: 5000
Workpiece weight max. [kg]: 250
Runout deviation max. [mm]: 0,005

MK: 4
D: 68
d: 35
d1: 31,27
Lges: 225
L: 120
l1: 37
l2: 83
Spring travel [mm]: 3
Speed max. [1/min]: 4000
Workpiece weight max. [kg]: 550
Runout deviation max. [mm]: 0,005

MK: 5
D: 92
d: 50
d1: 44,4
Lges: 275
L: 146
l1: 51
l2: 95
Spring travel [mm]: 3
Speed max. [1/min]: 3500
Workpiece weight max. [kg]: 1000
Runout deviation max. [mm]: 0,005

Axial clamping force display by dot matrix



0 – 340 |

340 – 650 |

650 – 950 | [daN]



0 – 360 |

360 – 690 |

690 – 1000 | [daN]



0 – 510 |

510 – 990 |

990 – 1430 | [daN]
