Precision tools
Made in Germany
Series 805
Traveling
Precision lathe tip
Product features
- High-performance design especially for CNC lathes
- Forcing nut according to CONZELLA factory standard
- For high speeds and high axial forces
- High concentricity due to high-end bearings
- Complete tool hardened and ground
- Maintenance-free permanent lubrication
- Shaft seal ring prevents ingress of dirt and coolant
- With additional seal also suitable for grinding applications

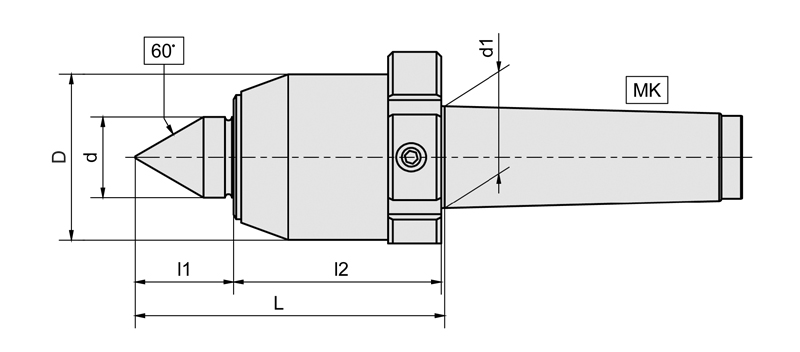

MK: 3
D: 52
d: 25
d1: 23,83
L: 94
l1[mm]: 30
l2[mm]: 57
Speed max. [1/min]: 12000
Workpiece weight max. [kg]: 300
Runout deviation max. [mm]: 0,003
Forcing-off thread [G]: M 54 x 1.5
Axial pressure max. [kN]: 4,20
MK: 4
D: 60
d: 28
d1: 31,27
L: 106
l1[mm]: 35
l2[mm]: 63
Speed max. [1/min]: 10000
Workpiece weight max. [kg]: 600
Runout deviation max. [mm]: 0,003
Forcing-off thread [G]: M 62 x 1.5
Axial pressure max. [kN]: 6,00
MK: 5
D: 72
d: 35
d1: 44,40
L: 136
l1[mm]: 43
l2[mm]: 82
Speed max. [1/min]: 8000
Workpiece weight max. [kg]: 1200
Runout deviation max. [mm]: 0,003
Forcing-off thread [G]: M 74 x 1.5
Axial pressure max. [kN]: 10,35
MK: 6
D: 83
d: 44
d1: 63,35
L: 148
l1[mm]: 50
l2[mm]: 88
Speed max. [1/min]: 5000
Workpiece weight max. [kg]: 2500
Runout deviation max. [mm]: 0,005
Forcing-off thread [G]: M 85 x 1.5
Axial pressure max. [kN]: 15,90
